DN25mm-100mm Ultrasonic Liquid Flow Meter Digital Ultrasonic Flowmeter with TS-2 For Sale

Ultrasonic Liquid Flow Meter Digital Ultrasonic Flowmeter with TS-2 DN25mm-100mm

• Flow meter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.
• A variety of liquid applications can be accommodated: ultra-pure liquids , portable water, chemicals, raw sweage, reclaimed water,cooling water,river water,plant.etc.

• High Accuracy1%
• Wide measuring range
• Several types transducer for selection, pipe size from Dn15mm to Dn6000mm(optional)
• High Reliability
• Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
• Strong Anti-interference
• Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, highvoltage line etc.
• Powerful Recording Function

• The totalizer data of the last 512 days/128 months/10 years
• The time and corresponding flow rate of the last 6 4 times of power on and off events
• The working status of the last 32 days

• Connect the temperature transducer ,can finish the heat/energy measurement
• Support SD card Memory
• Optional SD card

Main Unit

Transducer

Protection Level

IP67

IP68

Humidity

≤85%RH

Temperature

-20~60℃

-30~160℃

Basic Parameters:

Accuracy

≤1%

Velocity range

0~±10m/s, Bi-directional measurement

Pipe size

DN25-100mm

Temperature

-30~90℃

Type of liquid

Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.

Pipe material

Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

Signal output

1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

Signal input

3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.

Interface

RS485, support MODBUS

Data storage

SD card regularly store the pre-set results (optional)

Power supply

DC8~36V or AC85~264V

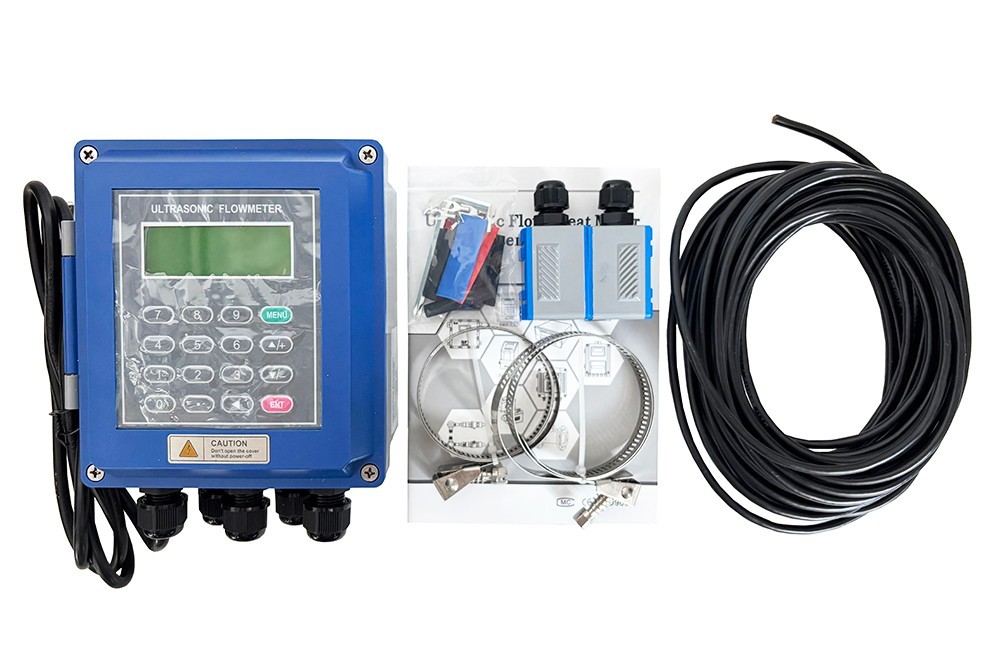

• Ultrasonic Flowmeter
• A pairTS-2 Transducer
• 2 x5m Signal cable
• Steel Belt
• Certificate of Warranty
