STEPPERONLINE 4 Axis Nema 23 Stepper Motor 3Nm & Driver DM542T &Power Supply Kit For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

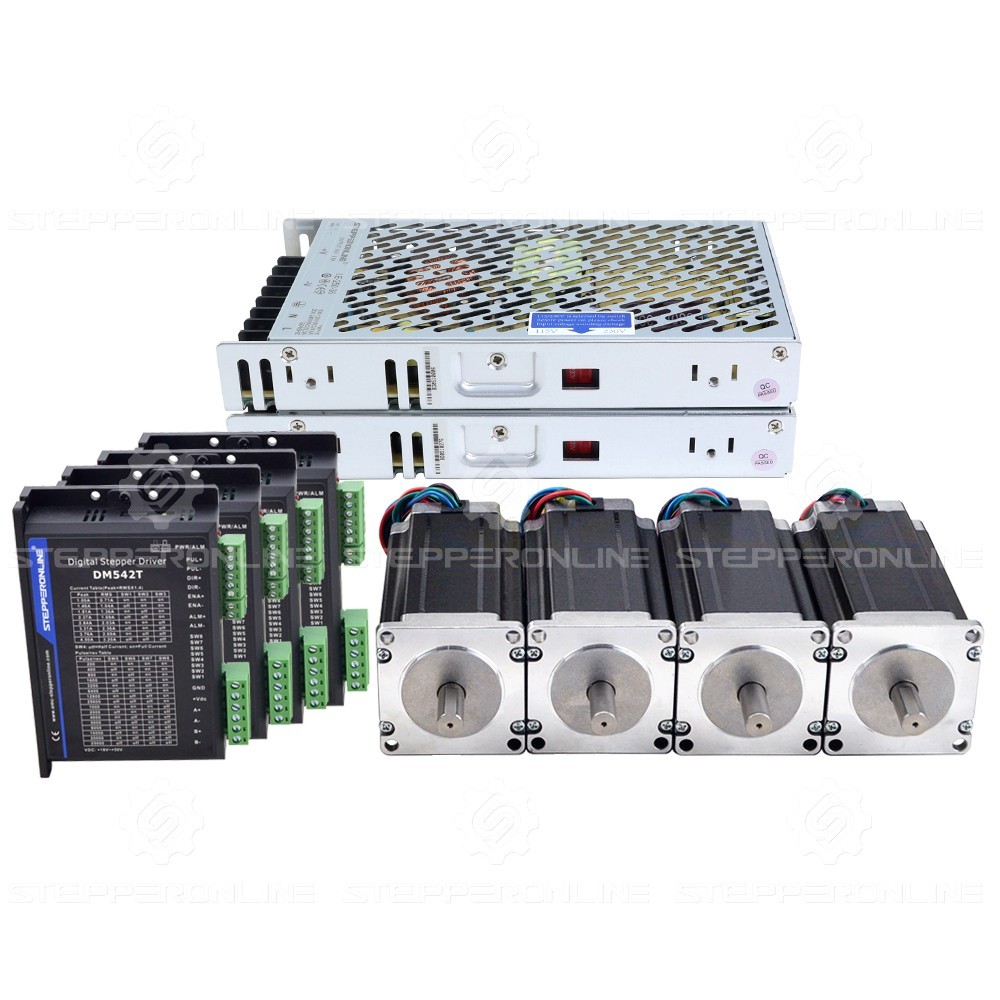

STEPPERONLINE 4 Axis Nema 23 Stepper Motor 3Nm & Driver DM542T &Power Supply Kit:
$250.00
This item is stocked & dispatched from US. This CNC kit includs: - 4 x Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
- 4 x Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC
- 2 x 250W 36V 6.9A 115/230V Switching Power Supply
Motor Specification - Manufacturer Part Number: 23HS45-4204S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 3.0Nm(425oz.in)
- Rated Current/phase: 4.2A
- Phase Resistance: 0.88ohms
- Inductance: 3.4mH±20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 113mm
- Shaft Diameter: Φ10mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 400mm
- Insulation Class: B style=\"box-sizing: border-box; color: #000000; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; white-space: normal; background-color: #ffffff; text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;\" />Driver SpecificationPower Specification
- Input Voltage: 115/230VAC±20%
- Input Frequency: 47-63Hz
- Input Current: 40A/230VAC
- Output Voltage: 36V
- Output Current: 6.9A
- Rated Output Power: 250W
- Leakage Current: <0.5mA/230VAC
- Dimensions: 215*115*30mm(L*W*H)
- Internal EMI filter
- High efficiency low cost
- Forced air cooling by built-in DC fan
- Over current, over voltage, short circuit and overheat protections
We will gradually replace the power supplies in this kit with the latest model: LE-250-36. The new power supply is an ultra-thin power supply optimized for industrial automation. During the replacement process, each warehouse may randomly ship new and old versions.Why StepperOnline ?- Over 10,000 Products In Stock:
