STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

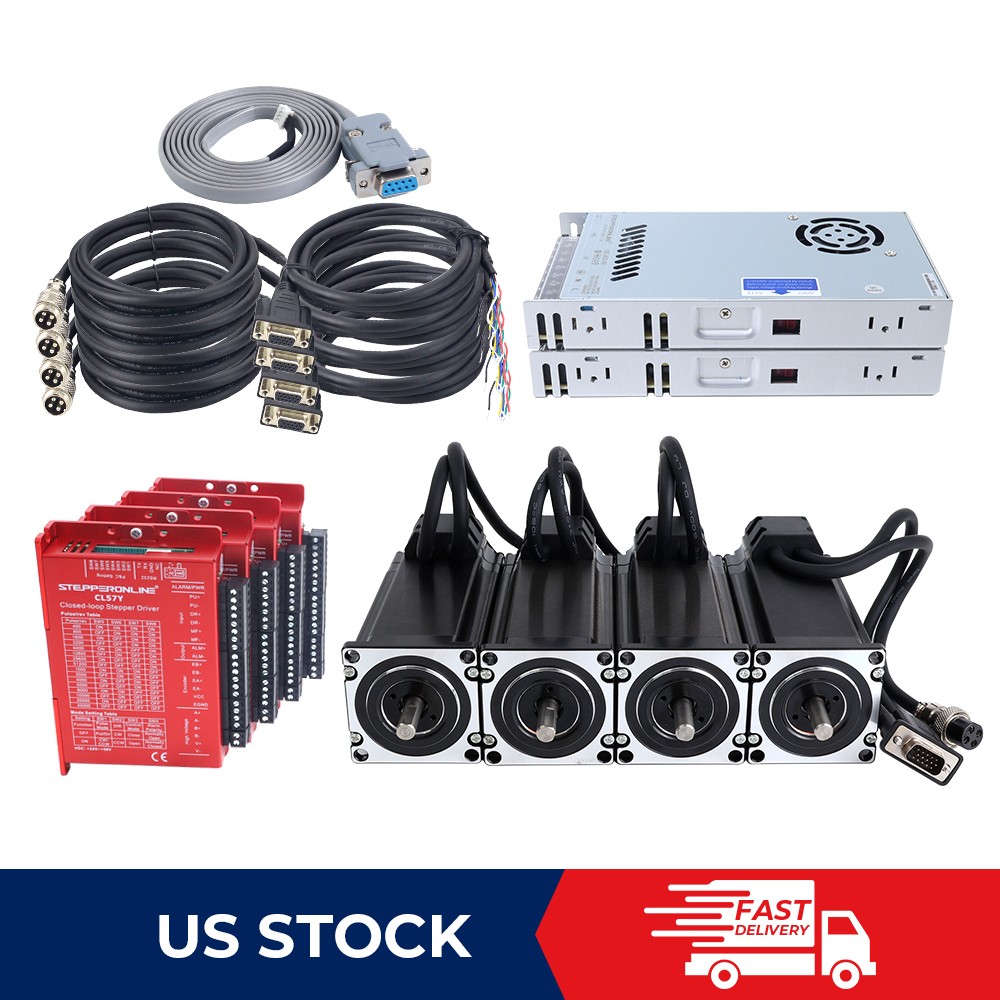

STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit:
$335.00
This CNC kit includes: - 4 x Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
- 4 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor CL57Y V20
- 2 x MEAN WELL 350W 36V 9.7A 115/230V Switching Power Supply
- 4 x 1.7m(67\") Motor AWG20 and Encoder Extension Cable
- 1 x RS232 debugging cable
Motor Specification - Part Number: 23HS45-4204D-E1000
- Number of phase: 2
- Holding Torque: 3.00Nm(424.83oz.in)
- Rated Current/phase: 4.2A
- Phase Resistance: 0.82ohms
- Inductance: 3.6mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 135mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-Cut Shaft Length: 15mm
- Cable Length: 300mm
- Insulation Class: B 130°C[266°F]
Encoder Specification - Output Circuit Type: Differential type
- Encoder Type: Optical Incremental
- Encoder Resolution: 1000PPR(4000CPR)
- Output Signal Channels: 2 channels
- Minimum Supply Voltage: 4.5V
- Maximum Supply Voltage: 5V
- Output Current: 25mA
- Output High Voltage: 4.5V
- Output Low Voltage: 4.2-4.3V
- Output Frequency Max: 60kHZ
Motor and Encoder ConnectionPIN1234MotorA+A-B+B- Part Number: LE-350-36Input Voltage: 115/230VAC±20%Input Frequency: 47-63HzInput Current: 40A/230VACOutput Voltage: 36VOutput Current: 9.7ARated Output Power: 350WLeakage Current: <0.5mA/230VACDimensions: 215*115*30mm(L*W*H)Internal EMI filterHigh efficiency low costForced air cooling by built-in DC fanOver current, over voltage, short circuit and overheat protections
|
|
