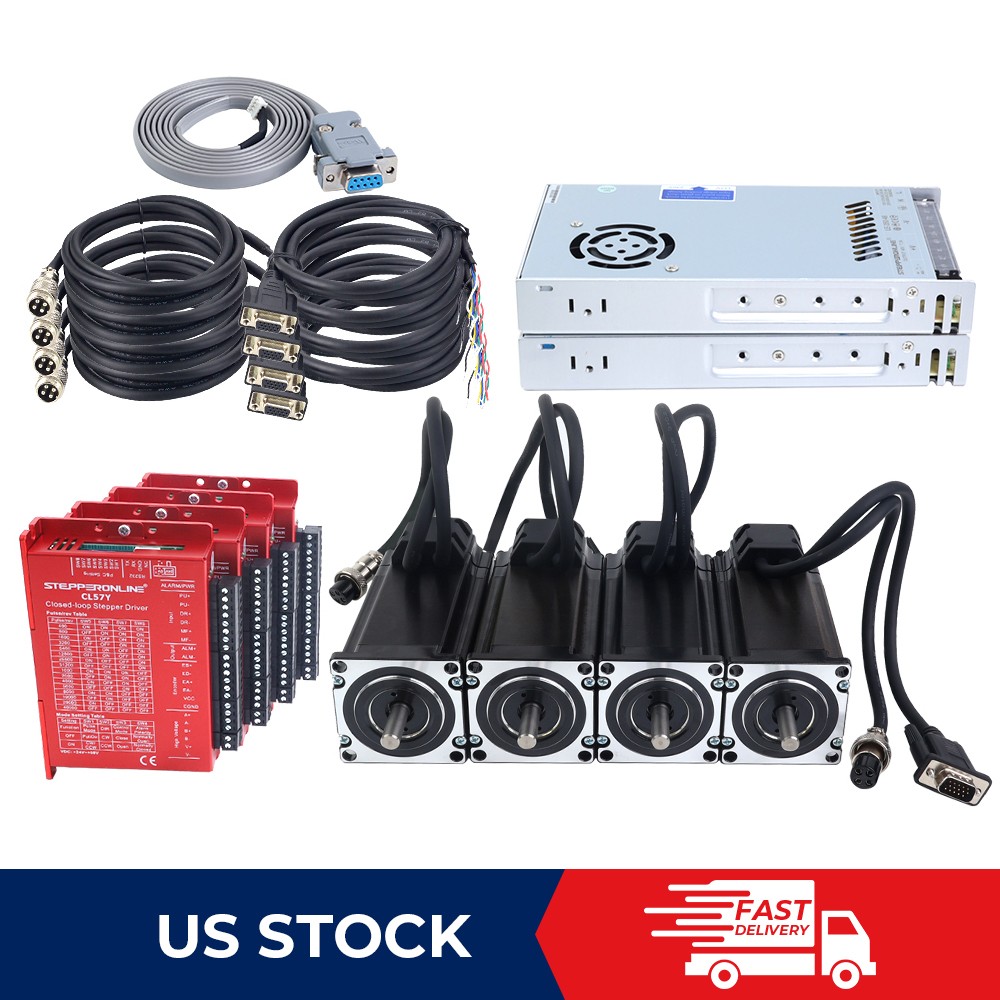

This 4 Axis CNC kit includes:
- 4 x Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
- 4 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
- 2 x 350W 48V 7.3A 115/230V Switching Power Supply
- 4 x 1.7m(67\") Long Encoder and Motor Extension Cables
- 1 x RS232 debugging cable
Motor Specification
- Manufacturer Part Number: 23HS40-5004D-E1000
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 3.00Nm(424.83oz.in)
- Rated Current/phase: 5.0A
- Phase Resistance: 0.6ohms ± 10%
- Inductance: 2.3mH ± 20%(1KHz)
- Insulation Class: B 130°C[266°F]
- Frame Size: 57 x 57mm
- Body Length: 122mm
- Shaft Diameter: Φ8mm
- Shaft Length: 22mm
- D-Cut Length: 15mm
- Cable Length: 300mm
DimensionsEncoder Specification
- Output Circuit Type: Differential type
- Encoder Type: Optical Incremental
- Encoder Resolution: 1000PPR(4000CPR)
- Output Signal Channels: 2channels
- Supply Voltage Min: 4V
- Supply Voltage Max: 5V
- Output Current: 100mA
- Output High Voltage: 5V
- Output Low Voltage: 4.5V
- Output Frequency Max: 60kHZ
Motor and Encoder ConnectionPIN1234MotorA+A-B+B-
Motor Extension Cable style=\"box-sizing: border-box; color: #000000; font-family: \'Open Sans\'; font-size: 16px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; white-space: normal; background-color: #ffffff; text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;\" />Encoder Extension Cable Specification
- Output Peak Current: 0~7A(0~5.6RMS)
- Input Voltage: +24~50VDC
- Logic Input Current: 1~7.5mA
- Pulse Input Frequency: 0~200kHz
- Isulation Resistance: 10MΩ
350W 48V Power Supply Specification
- Part Number: LE-350-48
- Input Voltage: 115/230VAC±20%
- Input Frequency: 47-63Hz
- Input Current: 40A/230VAC
- Output Voltage: 48V
- Output Current: 7.3A
- Rated Output Power: 350W
- Leakage Current: <0.5mA/230VAC
- Dimensions: 215*115*30mm(L*W*H)
- Internal EMI filter
- High efficiency low cost
- Forced air cooling by built-in DC fan
- Over current, over voltage, short circuit and overheat protections
The CL57Y-V20 improves upon the CL57Y by adding a 5V/24V selector switch and including a free RS232 debugging cable.The motor comes with a highly flexible cable that can be bent 8 million times without failure.
